Dimensions
Renault KANGOO
| Description in the drawing | Kangoo | Grand Kangoo | |
|---|---|---|---|

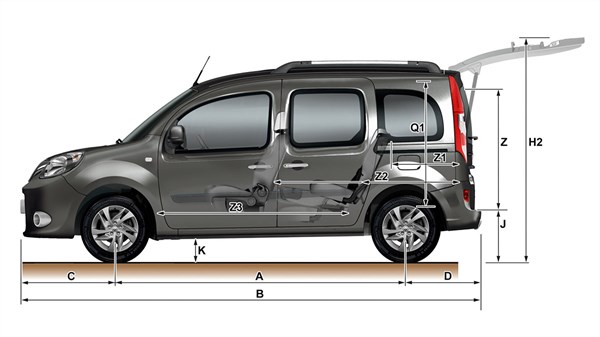

| A | Axle spacing | 2,697 | 3,081 |
| B | Total length | 4,282 | 4,666 |
| C | Front protrusion | 875 | 875 |
| D | Rear overhang | 710 | 710 |

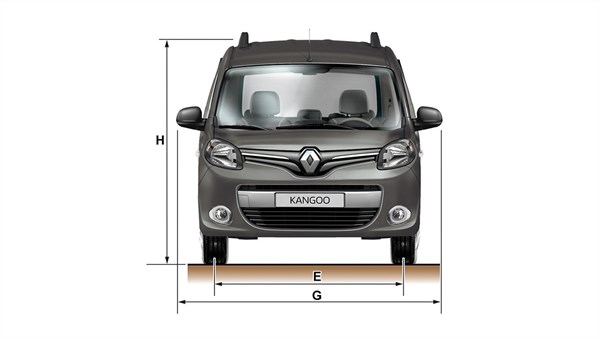

| E | The distance between the front wheels | 1,521 | 1,521 |
| G | Overall width with / without mirrors | 1,829/2,138 | 1,829/2,138 |
| H | Car height without load | 1,801 | 1,802 |
| H1 | High car with open Alibaba luggage bag | 1,872/1,934 | 1,878/1,902 |
| J | High sill luggage bag with / without blank | 554/615 | 571/580 |
| K | Distance from ground (with load) | 158-211/141-178 | 164-199/148-166 |
| Q1 | Inner height from the back | 1,155 | 1,115 |
| Z | Height of storage box | 1,115 | 1,129 |
| Z1 | Minimum loading length | 611 | 1,860 |
| Z2 | Maximum loading length (folded rear seats) | 937/1,803 | 1,328/2,210 |
| Z2 | Maximum loading length (without row 3, row 2 and folded passenger seat) | 2,850 | |
| Z3 | Length of passenger compartment (pedals - rear) | 1,716 | 2,641 |
| Description in the drawing | Kangoo | Grand Kangoo | |
|---|---|---|---|

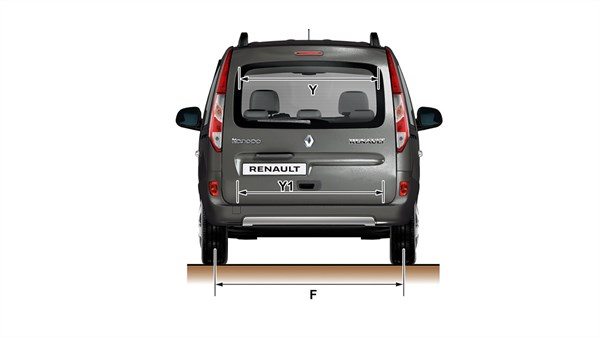

| F | Distance between rear wheels | 1,533 | 1,533 |

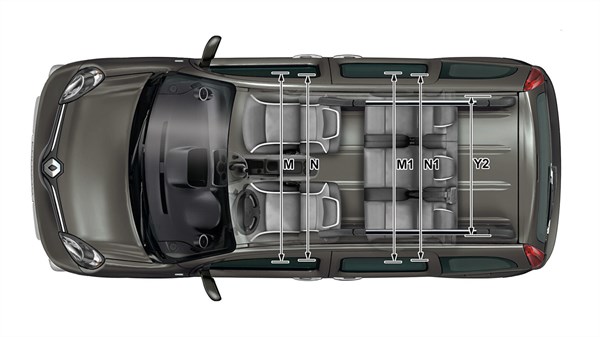

| M | Elbow space in the front seat | 1,510 | 1,510 |
| M1 | Elbow space in the back seat | 1,539 | 1,539 |
| N | The front seat shoulders | 1,464 | 1,464 |
| N1 | Shoulder area in the back seat | 1,511 | 1,511 |
| Y | View the entrance of the luggage bag from the top | 1,105 | 1.105 |
| Y1 | View the luggage bag from the inside | 1,125 | 1,131 |
| Y2 | Internal width between wheel fenders | 1,121 | 1,144 |
| KANGOO | Grand Kangoo | |
|---|---|---|
| Minimum load size | 660 Liters | 300 liters |
| Maximum load capacity | 2,600 Liters | 3,400 Liters |
| With the third row in wallet mode | - | 930 Liters |
| Without the third row | - | 750 Liters |
