Dimensions
Renault MEGANE Grand Coupé
| Description in the drawing | Size | |
|---|---|---|

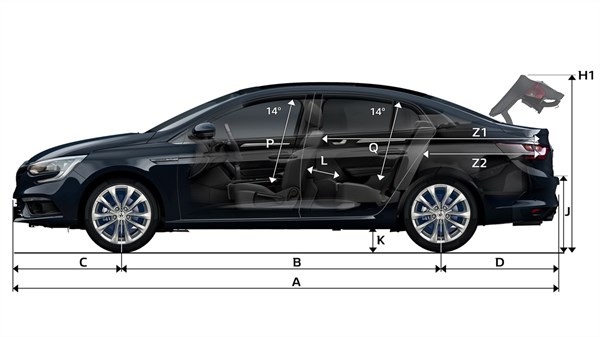

| A | Total length | 4,632 |
| B | Axle spacing | 2,711 |
| C | Front protrusion | 919 |
| D | Rear overhang | 1,002 |

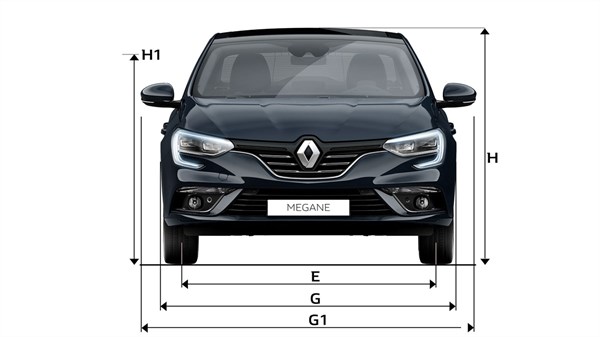

| E | The distance between the front wheels | 1,582 |
| F | Distance between rear wheels | 1,587 |
| G | Overall width without mirrors | 1,814 |
| G1 | Overall width with mirrors | 2,058 |
| H | Car height without load | 1,443 |
| H1 | High car with open Alibaba luggage bag | 1,708 |
| J | High threshold luggage bag and empty car | 700 |
| K | The height of the car off the ground without load | 136 |
| L | Rear seat space | 216 |

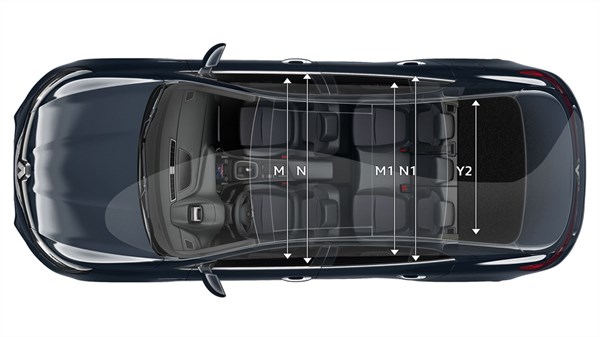

| M | Elbow space in the front seat | 1,492 |
| M1 | Elbow space in the back seat | 1,413 |
| Description in the drawing | Size | |
|---|---|---|
| N | The front seat shoulders | 1,441 |
| N1 | Shoulder area in the back seat | 1,390 |
| P | The front headroom in the seat is in the middle position | 886 |
| Q | Headroom in the posterior complex | 844 |

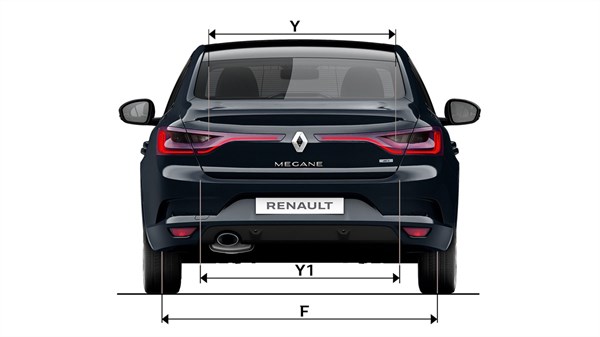

| Y | View the entrance of the luggage bag from the top | 945 |
| Y1 | View the luggage bag from the inside | 1,114 |
| Y2 | Internal width between wheel fenders | 1,108 |
| Z1 | Maximum loading length with folding rear seats | 1,783 |
| Z2 | Loading length behind rear seats | 1,062 |
| Total boot volume total VDA* | 503 liters |
| Total boot volume total VDA row 2 folded down up to roof | 987 Liters |
