Dimensions
Renault ZOE

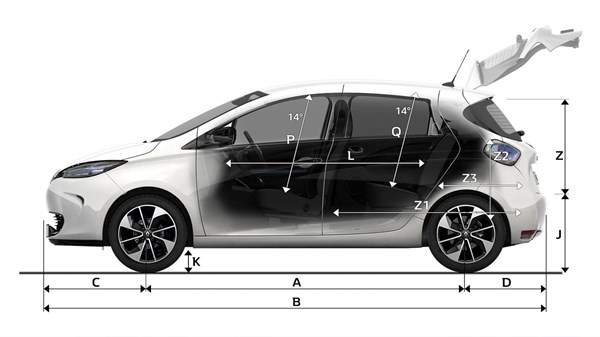

| Description in the drawing | Size | |
|---|---|---|
| A | Axle spacing | 2,588 |
| B | Total length | 4,085 |
| C | Front protrusion | 839 |
| D | Rear overhang | 657 |
| H1 | Height, not loaded while back door is open | 2,028 |
| J | High threshold for luggage space without load | 724 |
| K | Distance from ground (with load) | 120 |
| L | Cab length (rows 1 and 2) | 1,678 |
| M | Elbow space in the front seats | 1,384 |
| M1 | Elbow space in rear seats | 1,390 |
| N | Front shoulders | 1,365 |
| N1 | Rear seat shoulders | 1,320 |
| P | The ceiling in the front seats is 14 degrees | 904 |
| Q | The roof in the rear seats measures 14 degrees degrees انظر أيضًا degree | 826 |
| Z | Rear aperture height | 685 |
| Z1 | Maximum load length, flat folded back sofa | 1,426 |
| Z2 | Height up to rear rack | 622 |
| Z3 | The length of the load next to the rear sofa | 560 |

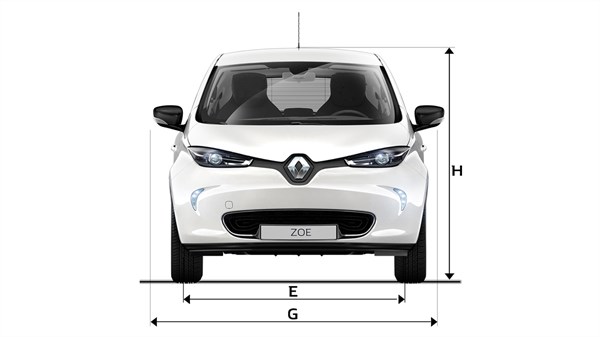

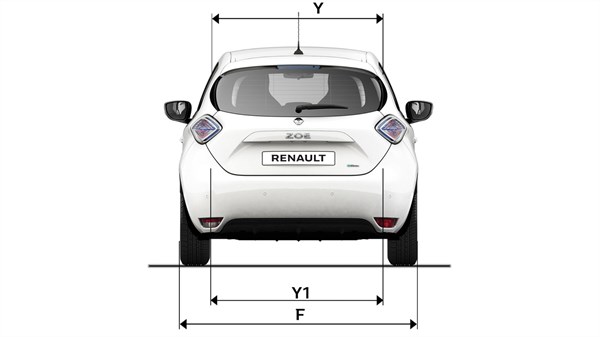

| Description in the drawing | Size | |
|---|---|---|
| E | The distance between the front wheels | 1,511 |
| F | Distance between rear wheels | 1,510 |
| G | Overall width / including outside mirrors | 1,730/1,945 |
| H | Height without loading | 1,562 |
| Y | Width at the top of the luggage space | 941 |
| Y1 | Width at the bottom of the luggage space | 899 |
| Y2 | Width at the bottom of the luggage space | 1,037 |
| Bottom shelf back | 338 Liters |
| A flat back sofa is folded up to the ceiling | 1,225 Liters |
