All-New Renault MASTER
Enclosed transport, open transport and passenger transport: discover the dimensions and weights.
Dimensions

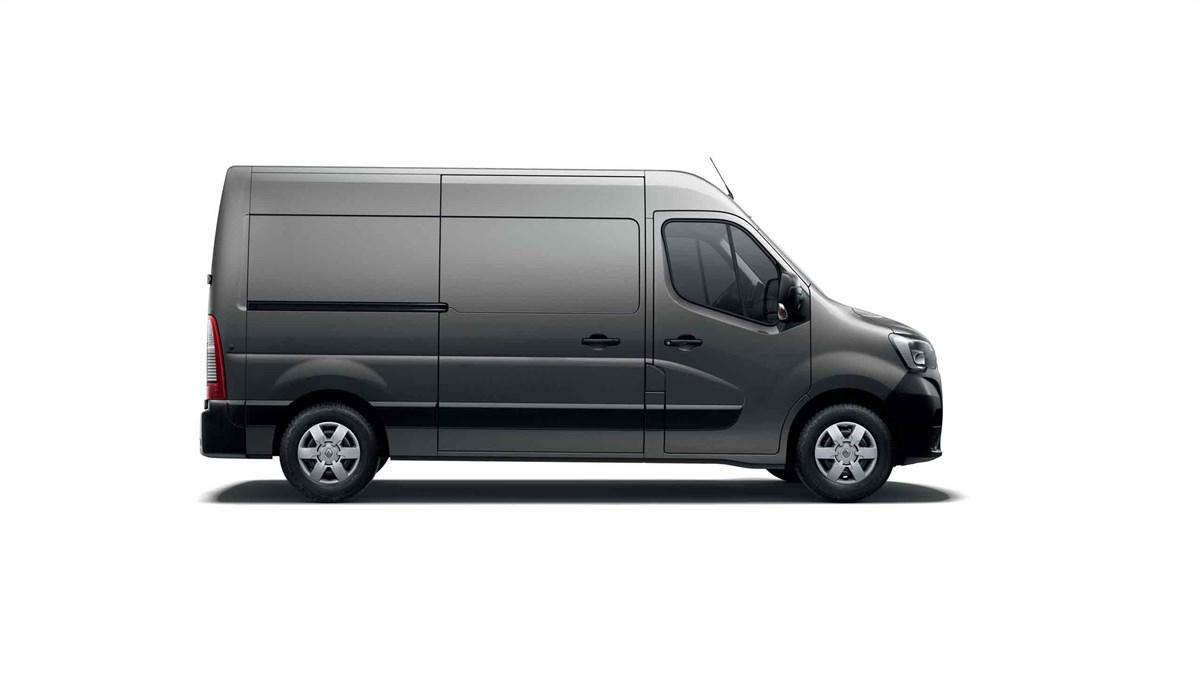

Enclosed transport
| L1H1 | L1H2 | L2H2 | L2H3 | L3H2 | L3H3 | |
|---|---|---|---|---|---|---|
| Usable volume (m³) | 8 | 9 | 10,8 | 12,3 | 13 | 14,8 |
| Usable cargo capacity (L1: 2.8t/3.3/3.5t: L2:3.3t/3.5t: L3: 3.5t) (kg) | 923/1423/1623 | 901/1401/1601 | 1329/1529 | 1304/1504 | 1434 | 1427 |
| Usable interior length (mm) | 2583 | 2583 | 3083 | 3083 | 3733 | 3733 |
| Usable interior width (mm) | 1765 | 1765 | 1765 | 1765 | 1765 | 1765 |
| Width between wheel arches (mm) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Sliding side door(s) HxL (mm) | 1581x1050 | 1780x1050 | 1780x1270 | 1780x1270 | 1780x1270 | 1780x1270 |
| Rear door HxL (mm) | 1627x1580 | 1820x1580 | 1820x1580 | 1820x1580 | 1820x1580 | 1820x1580 |

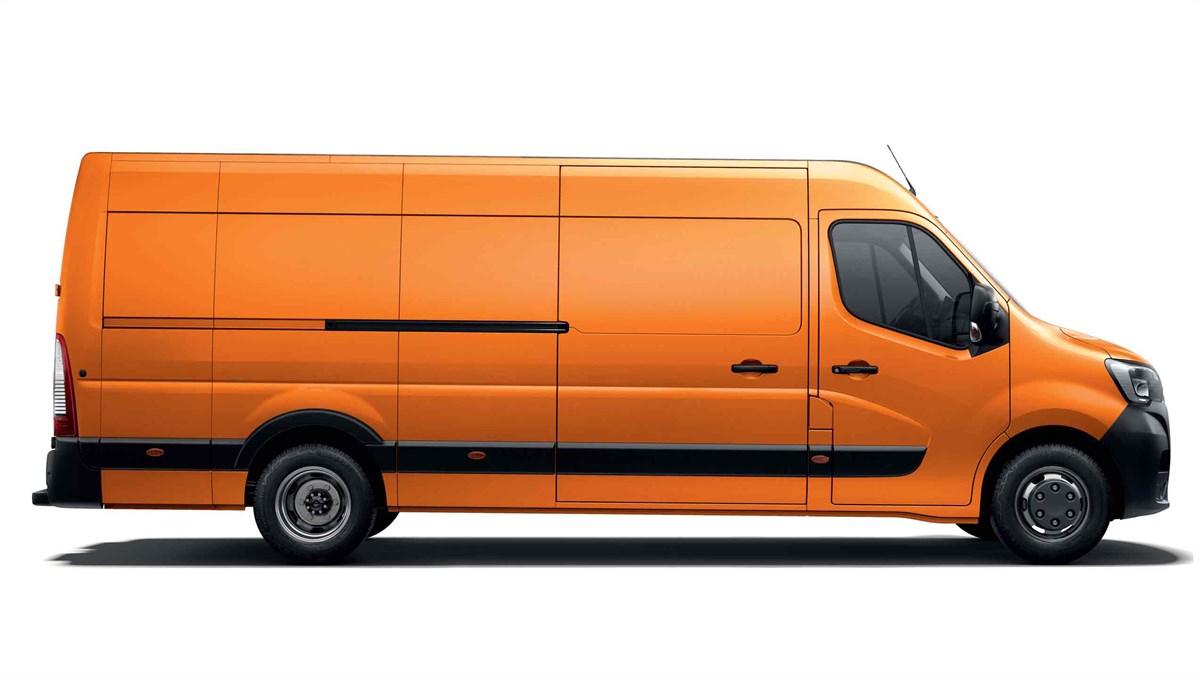

| L3H2 | L3H3 | L4H2 | L4H3 | |
|---|---|---|---|---|
| Usable volume (m³) | 12,4 | 14,2 | 14,9 | 17 |
| Usable cargo capacity (3.5t RS/3.5t RJ/4.5t RJ) (kg) | 1207/1151/2151 | 1109/1128/2128 | 1207/1111/2111 | 1160/1040/2040 |
| Usable interior length (mm) | 3733 | 3733 | 4383 | 4383 |
| Usable interior width (mm) | 1765 | 1765 | 1765 | 1765 |
| Width between wheel arches (RS/RJ) (mm) | 1380/1080 | 1380/1080 | 1380/1080 | 1380/1080 |
| Sliding side door(s) HxL (mm) ) | 1684x1270 | 1684x1270 | 1684x1270 | 1684x1270 |
| Rear door HxL (mm) | 1724x1580 | 1724x1580 | 1724x1580 | 1724x1580 |

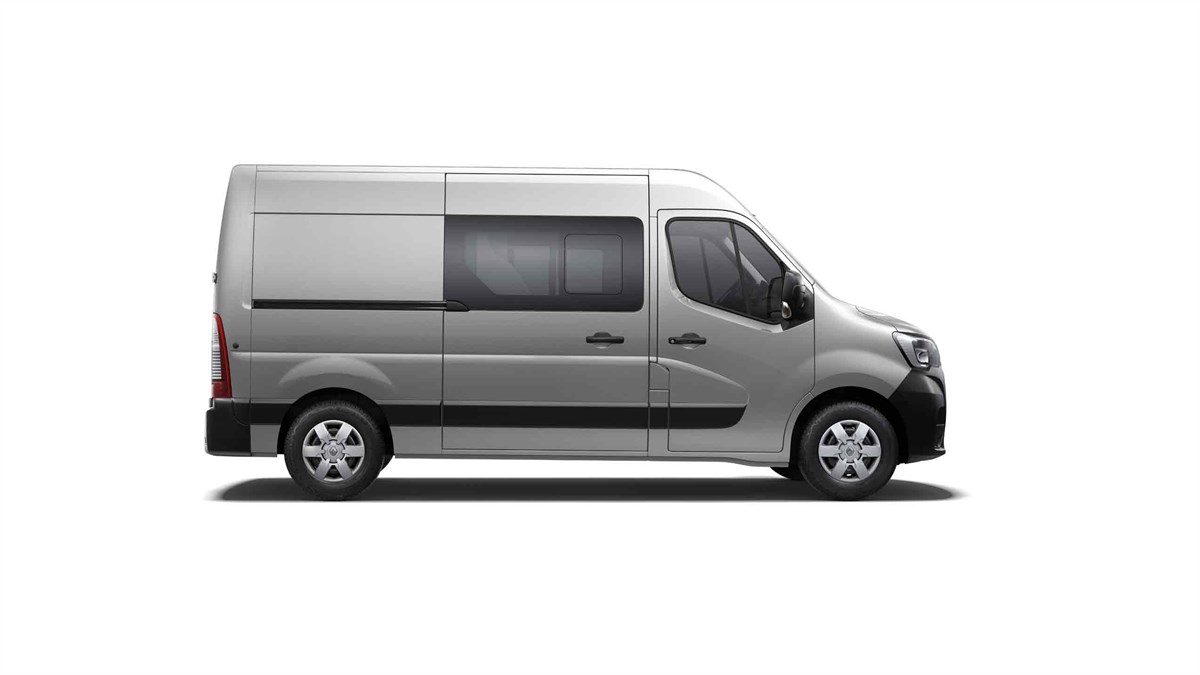

| L1H1 | LIH2 | L2H2 | L3H2 | |
|---|---|---|---|---|
| Usable volume (m³) | 5 | 5,3 | 6,9 | 9 |
| Usable cargo capacity (L1: 3.5t; L2: 3.3t/3.5t: L3: 3.5t) (kg) | 1207/1398 | 1208/1400 | 1124/1324 | 1230 |
| Usable interior length (mm) | 1716 | 1716 | 2175 | 2825 |
| Usable interior width (mm) | 1765 | 1765 | 1765 | 1765 |
| Width between wheel arches (mm) | 1380 | 1380 | 1380 | 1380 |
| Sliding side door(s) HxL (mm) | 1581x1050 | 1780x1050 | 1780x1270 | 1780x1270 |
| Rear door HxL (mm) | 1627x1580 | 1820x1580 | 1820x1580 | 1820x1580 |

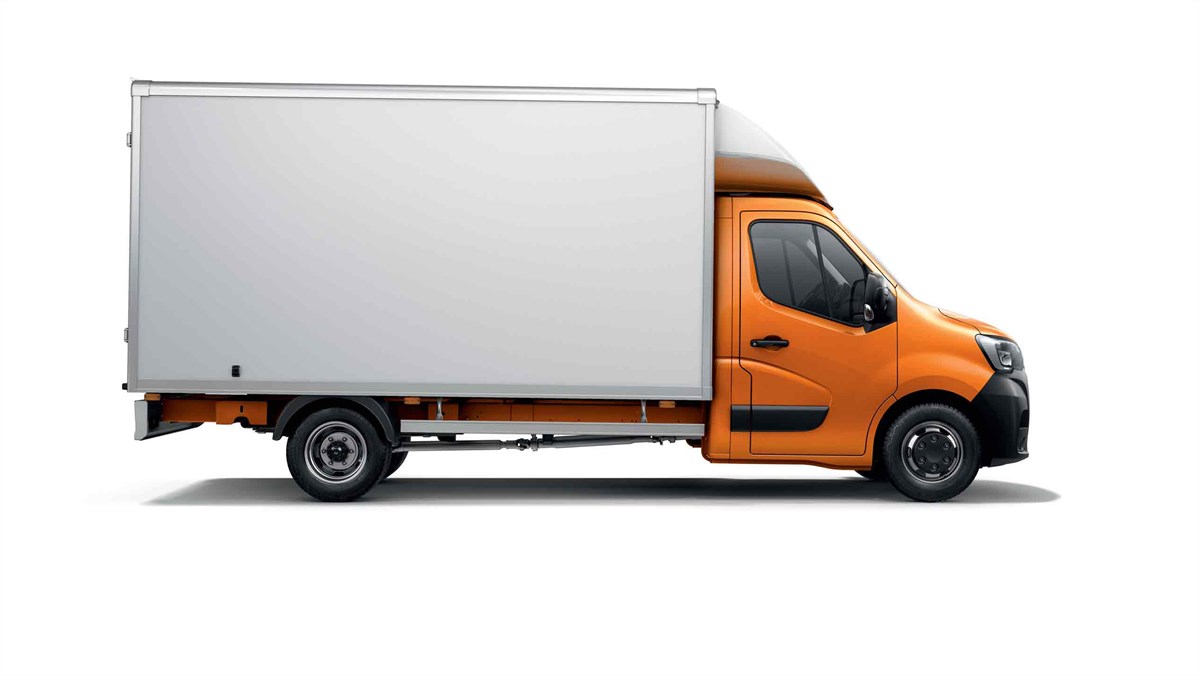

| L3 Front-wheel drive 20m³ | L3 Rear-wheel drive 20m³ | L4 Rear-wheel drive 20 m³ | L4 Rear-wheel drive 22 m³ | |
|---|---|---|---|---|
| Usable volume m³ | 19,3 | 19,3 | 20,3 | 21,7 |
| Usable cargo capacity (3.5t) (kg) L4: (3.5t RJ/4.5t RJ) | 1162 | 1012 | 834/1834 | 848/- |
| Usable interior length (mm) | 4100 | 4100 | 4300 | 4580 |
| Usable interior width (mm) | 2070 | 2070 | 2150 | 2150 |
| Usable interior height (mm) | 2200 | 2200 | 2200 | 2200 |
| Rear door HxL (mm) | 2192x2105 | 2192x2105 | 2192x2105 | 2192x2105 |
Transport ouvert

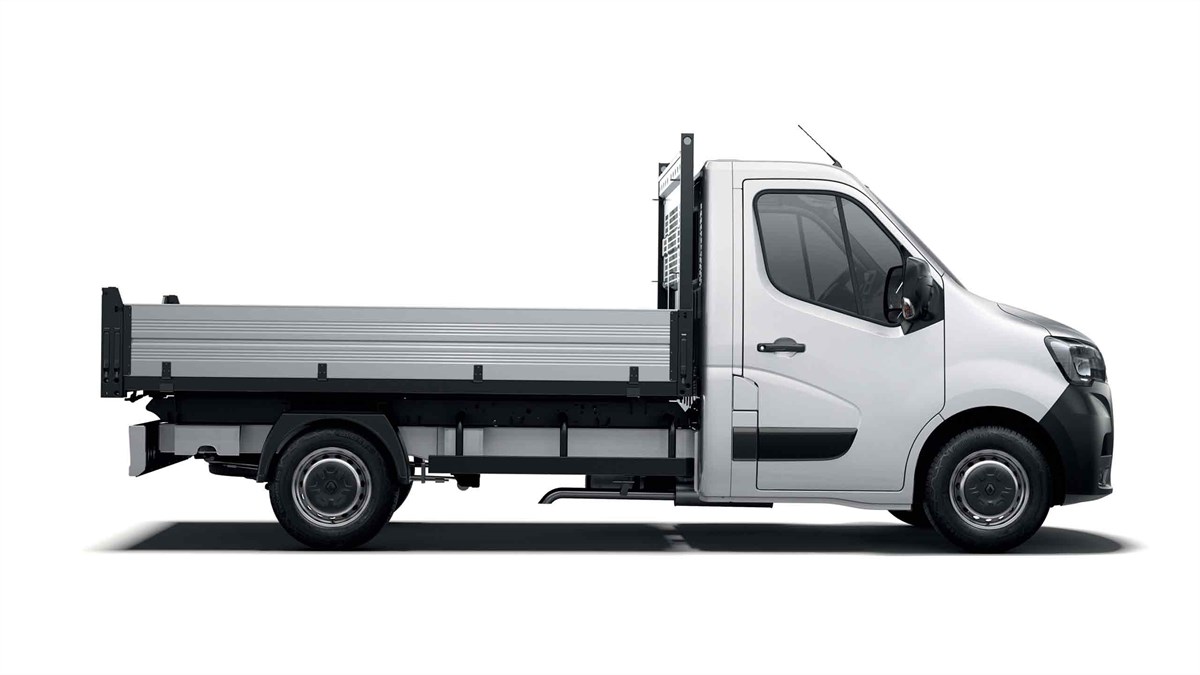

| Single cab L2 Front-wheel drive | Double cab L3 Front-wheel drive | |
|---|---|---|
| Usable cargo capacity (3.5t) (kg) | 1242 | 1057 |
| Tipper length (mm) | 3280 | 3280 |
| Tipper width (mm) | 2100 | 2100 |
| Hauteur benne (mm) | 400 | 400 |
| Euro pallet capacity | 6 | 6 |

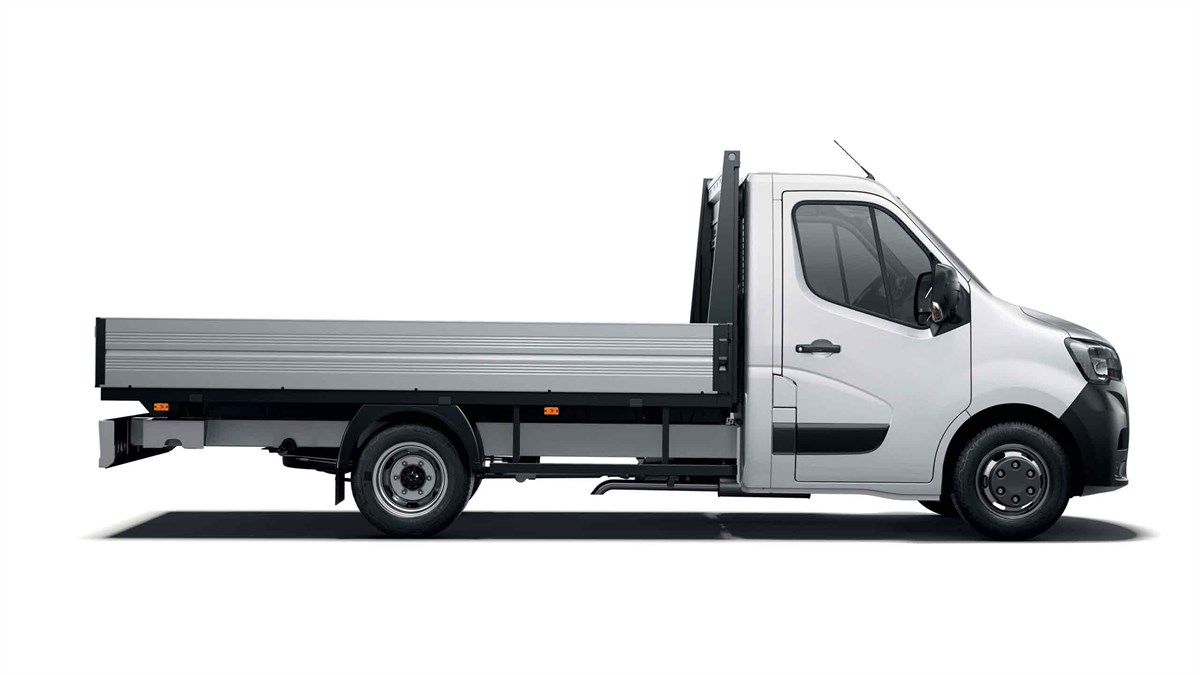

| Single cab L2 Front-wheel drive | Single cab L3 Front-wheel drive | Double cab L2 Front-wheel drive | Double cab L3 Front-wheel drive | |
|---|---|---|---|---|
| Usable cargo capacity (3.5t) (kg) | 1288 | 1233 | 1288 | 1233 |
| Drop-side flatbed length (mm) | 2480 | 3230 | 2480 | 3230 |
| Drop-side flatbed width (mm) | 2100 | 2100 | 2100 | 2100 |
| Drop-side flatbed height (mm) | 400 | 400 | 400 | 400 |
| Euro pallet capacity | 5 | 5 | 5 | 5 |
Transport de personnes
.

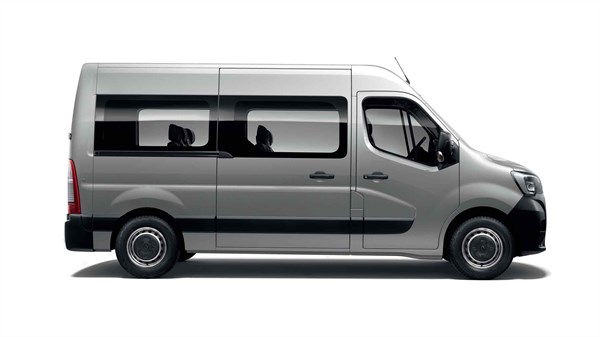

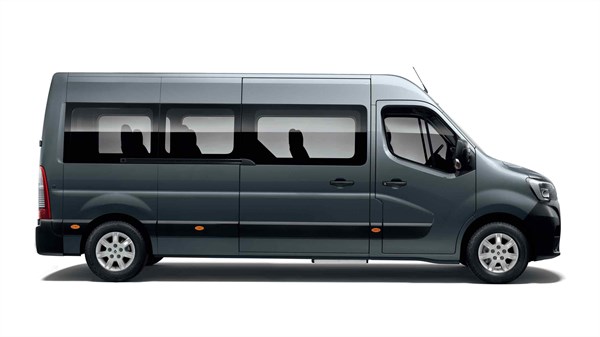

| MASTER Combi L1H1 | MASTER Combi L2H2 | MASTER Bus L3H3 | |
|---|---|---|---|
| Number of seats | 6/9 | 6/9 | 17 |
| Usable cargo capacity (3.0t/3.3t/3.5t) (kg) | 930/1225/- | -/1137/1337 | - |
| Loading volume (m³) | 4,71/2,8 | 6/4,7 | - |
| Side door entry width (mm) | 1581 | 1780 | 1780 |
| Side door entry height (mm) | 1050 | 1270 | 1270 |
| Rear door entry height (mm) | 1627 | 1820 | 1820 |
