New MASTER Z.E. available in 3 lengths
New MASTER Z.E. : its dimensions

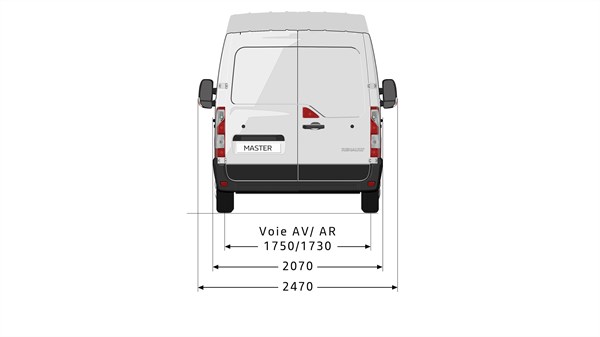

Van dimensions (mm)
| Panel van L1H1 | Panel van L1H2 | Panel van L2H2 | Panel van L3H2 | |
|---|---|---|---|---|
| LOADING AREA | ||||
| Usable length | 2583 | 2583 | 3083 | 3733 |
| Usable length at 1.1 m | 2530 | 2530 | 3030 | 3680 |
| Usable width | 1765 | 1765 | 1765 | 1765 |
| Width between wheel arches | 1380 | 1380 | 1380 | 1380 |
| Usable height | 1700 | 1894 | 1894 | 1894 |
| SLIDING SIDE DOOR(S) | ||||
| Width of sliding side door(s) | 1050 | 1050 | 1270 | 1270 |
| Height of sliding side door(s) | 1581 | 1780 | 1780 | 1780 |
| REAR DOOR | ||||
| Width (169 mm from floor) | 1580 | 1580 | 1580 | 1580 |
| Entrance height | 1627 | 1820 | 1820 | 1820 |
| Cargo threshold (min/max) | 546/564 | 544/563 | 545/562 | 543/557 |
| Minimum ground clearance | 182 | 182 | 174 | 172 |

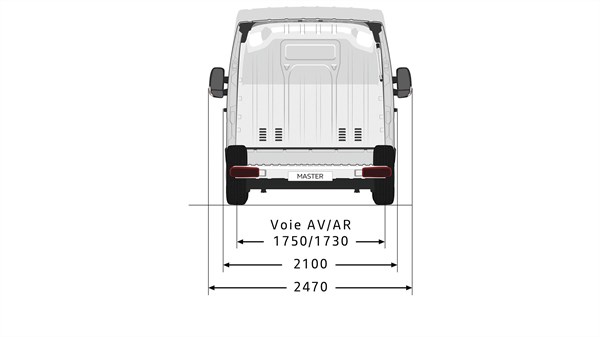

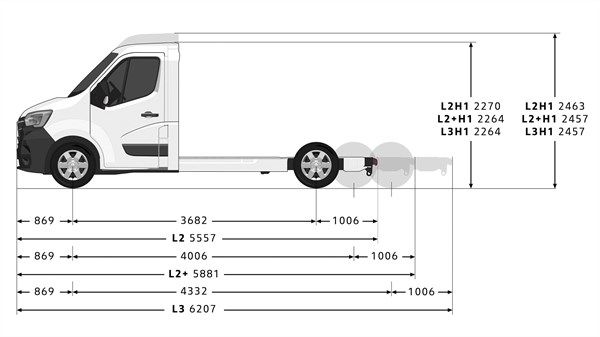

Platform cab dimensions (mm)
| Platform cab L2H1 | Platform cab L3H1 | |
|---|---|---|
| Maximum drivable length | 5751 | 7021 |
| Usable drivable length (maximum/minimum) | 3091/3313 | 3741/4583 |
| Maximum usable drivable width (with standard/extended repeater) | 2170/2350 | 2170/2350 |
| Width with extended rear-view mirrors | 2654 | 2654 |
| Floor sill height (minimum/maximum) | 581/585 | 579/583 |
| Minimum ground clearance | 166 | 166 |

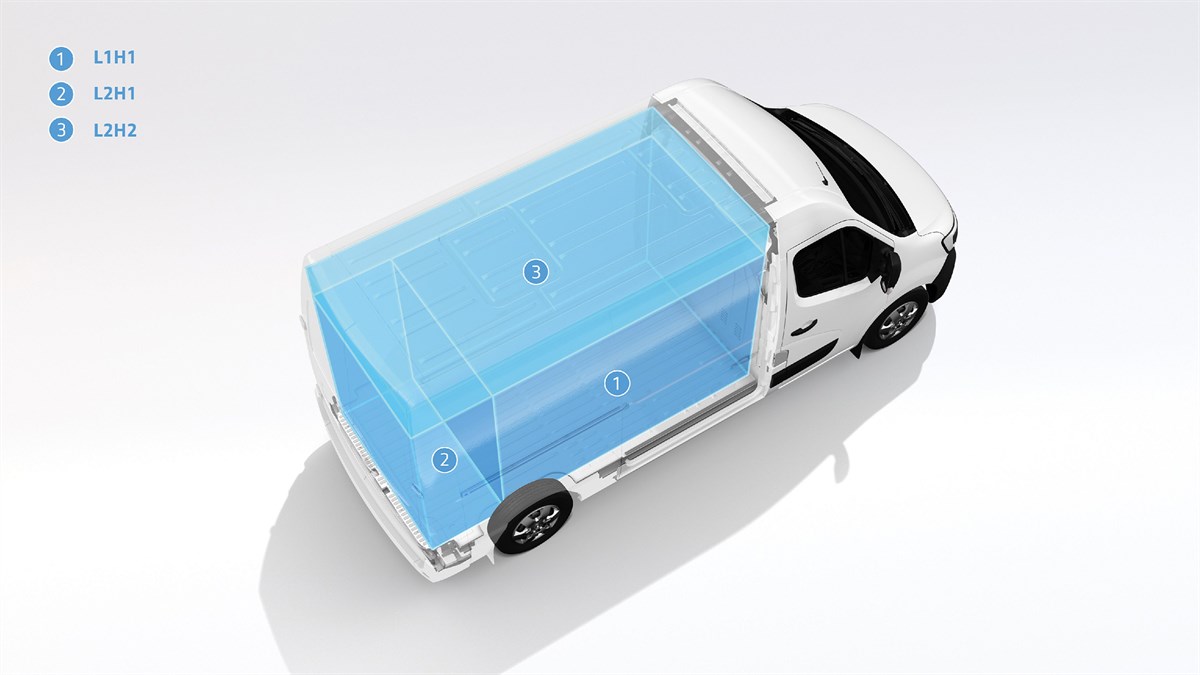

Loading volume
| Panel van L1H1 | Panel van L1H2 | Panel van L2H2 | Panel van L3H2 | |
|---|---|---|---|---|
| Loading volume (m³) | 8 | 9 | 10.8 | 13 |
| Live load capacity (kg) | TBC | TBC | TBC | TBC |
| Platform cab L2H1 | Platform cab L3H1 | |
|---|---|---|
| Loading volume (m³) | Depending on the conversion | Depending on the conversion |
| Live load capacity (kg) | TBC | TBC |
